The C9 christmas light bulb is the undisputed standard for professional roofline installations, but what about its various subtypes?
At roughly 1.5 inches in diameter with an E17 intermediate base, the C9 sits at the top of the residential and commercial decorative lighting hierarchy. C9 bulbs output between 80 and 120 lumens, delivering the punch required to read clearly from the street, across a wide lawn, or from an elevated roofline in full darkness.
The LED shift changes everything about finish. Legacy incandescent C9s emitted light in every direction from a glowing filament, making the shell finish a secondary concern. Modern LED engines place a directional point source inside that same shell, meaning the outer lens now does the heavy lifting of shaping, scattering, and softening the output. And because LEDs run cooler, draw less power, and last far longer, installers are no longer replacing bulbs every season — so the finish decision carries real long-term weight.
In practice, two C9 bulbs sitting side by side on a strand can share the exact same internal LED chip yet produce dramatically different visual effects based solely on whether the outer shell is smooth or faceted. The external finish governs perceived brightness, light scatter, and overall aesthetic from a distance, so let’s break down exactly how the faceted lens engineers that visibility advantage.

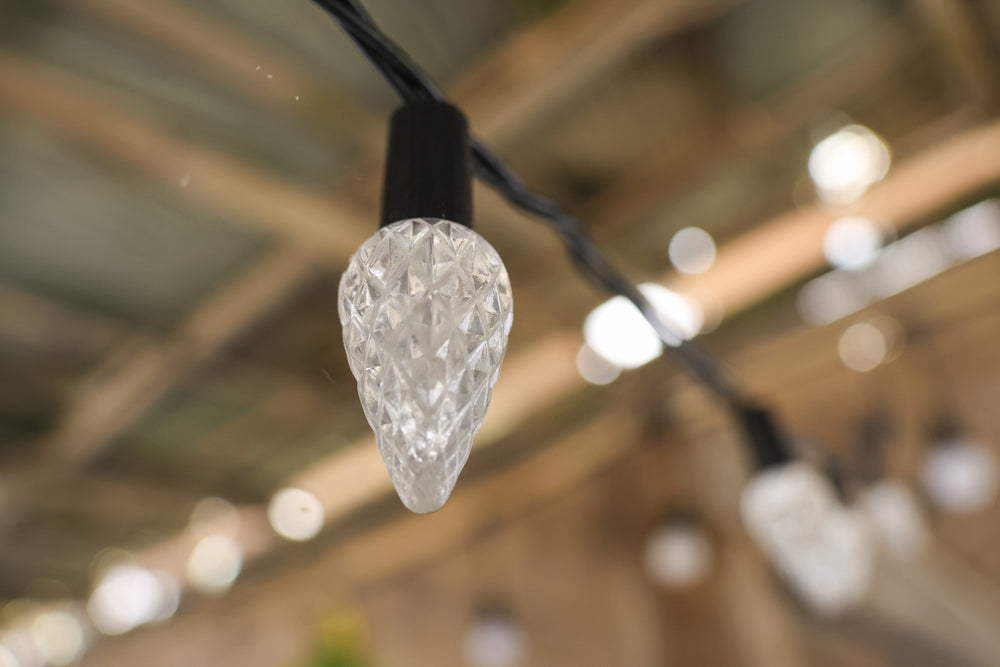

Faceted C9 Bulbs: Engineering Maximum Visibility
C9 faceted LED bulbs are engineered to solve one specific problem: how do you make a light source appear vivid and dynamic from 30, 50, or even 100 feet away?
The answer lies in the lens itself. The outer shell of a faceted bulb is cut with dozens of small, angled faces — a geometry often called a diamond cut or prism finish. Each face acts as an independent reflector, bending and redirecting light in a slightly different direction. The result is a controlled scatter pattern that creates a sparkling, multi-directional effect without any moving parts, alongside the following benefits:
-
Roofline readability: Scattered light catches the eye at steep viewing angles, where a smooth bulb's output narrows significantly.
-
Elevation: High-mount applications above 15 feet benefit most, as scattered light compensates for viewing distance.
-
Perceived brightness: The multi-directional glow reads as more intense from the street, even at equivalent wattage.
-
No-wind twinkle: Facets produce visual movement passively, eliminating the need for flicker controllers on many installs.
In practice, faceted finishes have become the default choice for professional roofline and peak installations precisely because they perform where it counts — at a distance, in open air, under ambient street lighting.
The flip side is that the same light-scattering quality that makes faceted bulbs dominant at elevation can feel visually busy in close-proximity settings. For eye-level displays and indoor applications, smooth bulbs are perfectly valid.
Smooth C9 Bulbs: The Case for Traditional Aesthetics
C9 smooth LED bulbs deliver the classic ceramic look that defined outdoor holiday displays for decades, and that nostalgic finish can still outperform faceted designs in specific, high-value applications.
The smooth finish creates a soft, diffused glow rather than a sharp, multi-point sparkle. Because the shell scatters light evenly across its surface, the bulb reads as a single, uniform orb of color, which fits well for installs that demand warmth and cohesion.
Ideal applications for smooth bulbs tend to cluster around eye-level and close-proximity installations. Patio string arrangements, wrap lighting on columns and railings, indoor commercial trees, and window displays all benefit from the gentle luminance smooth shells provide.
The hot-spot problem was a real limitation of older incandescent smooth bulbs, where the filament burned visibly through the shell, creating an uneven bright point. Modern LED emitters paired with a quality diffused smooth shell eliminate that issue entirely; the light spreads uniformly from base to tip with no distracting center glare.
One important caveat: smooth bulbs lose competitive visibility beyond roughly 30 feet. For roofline runs or large perimeter installations viewed from the street, the faceted finish covered in the previous section tends to work significantly better.
Installation Logistics, Wattage, and Reliability
When it comes to electrical planning, the difference between smooth and faceted LED bulbs is zero. Both draw the same power, making load calculations straightforward regardless of which finish you choose.
Wattage is determined by the LED driver and SMD chip inside the shell, not the shell itself. Professional-grade C9 LED bulbs typically pull approximately 0.9 watts per bulb, whether the housing is smooth or faceted. For a standard 100-bulb roofline run, that works out to 90 watts total ÷ 120 volts = 0.75 amps, landing well within the capacity of a single 15-amp circuit, which means you can safely run multiple strings without overloading a breaker.
SMD technology is the other constant worth understanding. Surface Mount Diodes are soldered directly onto a circuit board inside the shell, which eliminates the fragile filament connections that made older incandescent C9s prone to failure. In practice, this reliability holds across both finishes, so both bulb types have the same longevity.
Similarly, high-quality smooth and faceted bulbs alike are rated for outdoor exposure, with UV-stabilized polycarbonate construction that resists cracking in freeze-thaw cycles. And, because they are shatterproof, broken glass on rooftops and gutters is no longer a concern mid-install.
