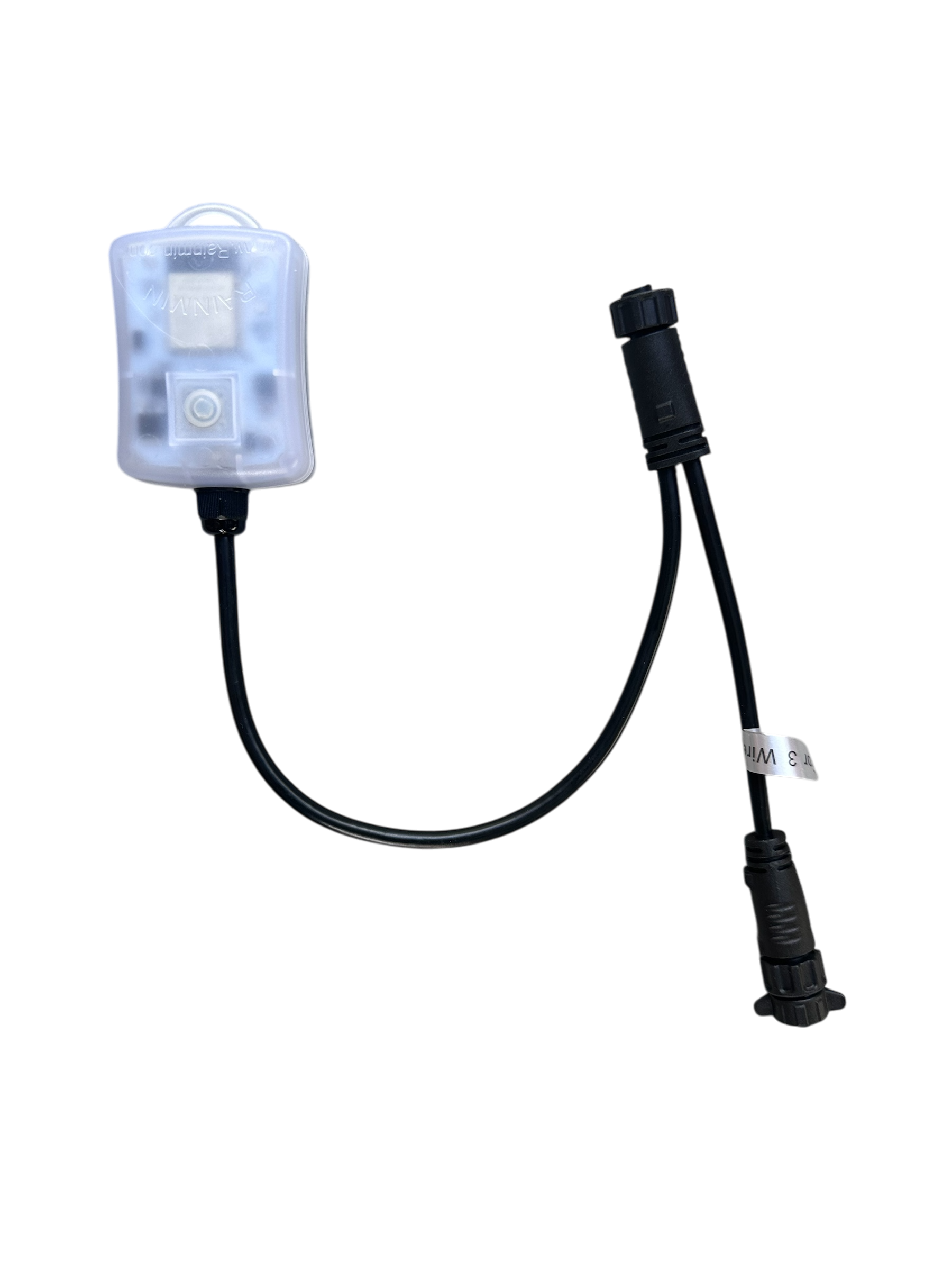

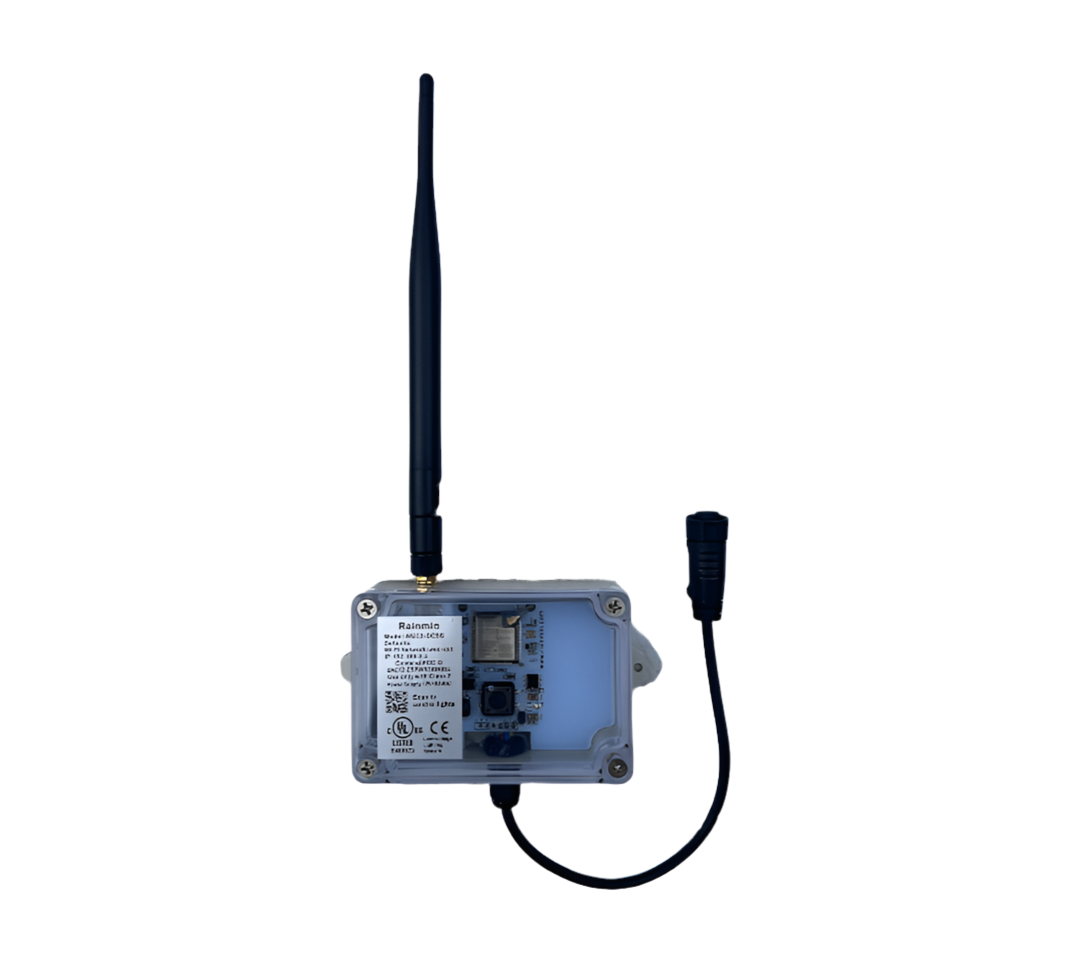

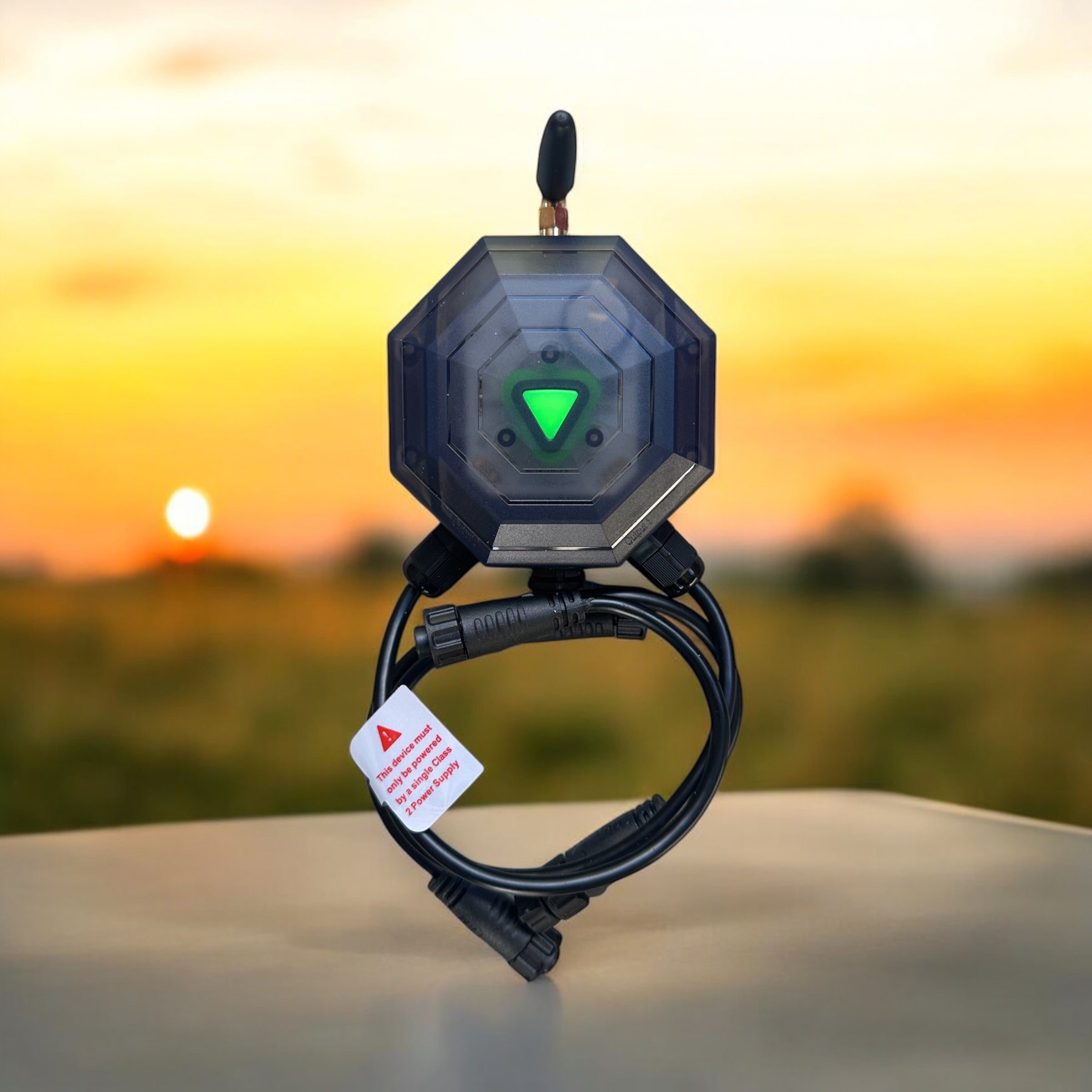

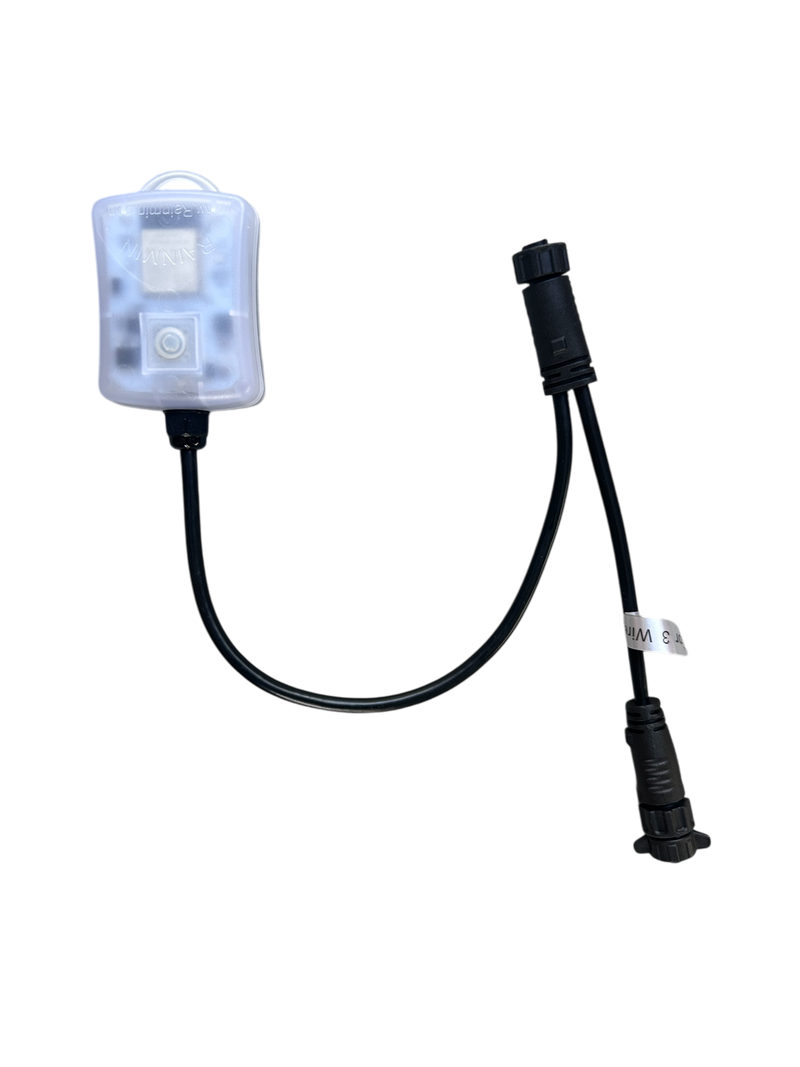

Single port antenna 3 pin controller to control Minleon permanent lights (use 3-4 pin converter to change to 4 pin lights). Can control up to 400 lights for each single port controller. Controller can support power up to 200 lights, but needs a power injection to expand to 400 lights. 4.17 amp Power supply (inverter) not included.
This controller has a brand new scheduler option with up to 20 schedules as well as a black out pebble option. There is also a photocell sensor built into the controller so you can use a standard photocell timer, or a schedule option.
The app to download for this controller is "Pixel Dancer", and is supported by both iOS and Android operating systems. You can also control the app via website by typing in 192.168.2.2 into your internet browser.
Controller reset can be done by unscrewing the 4 screws on the clear cover, and removing the top clear cover. With the controller unplugged, hold down the black center button, and plug the controller into power. Continue holding the button for about 5 seconds, and then release. The controller will go through a reset/reboot function which takes about 60 seconds.
